Stainless Steel Plate
    发布时间: 2023-03-24 14:23
Stainless Steel Plate is perfect for many kinds of applications. You can order custom-cut lengths with specific dimensions to meet your requirement. Our prices are competitive, and we offer a wide variety of sizes and thicknesses.
Stainless Steel Plate

Product Specification and Size (For Reference)


ASTMJISAISIENMill's Standard
GradeS30400
S30403
S31603
S43000		SUS304
-
-
SUS430		304
304L
316L
430		1.4301
1.4307
1.4404
1.4016		202
204Cu3

Other specifications are also available up to request

Available Size

ThicknessWidthLengthSurface Finish
15~85 mm914, 1219, 1524 mm3048, 6069 mm
10 M		Black
3~8 mm20~1524 mmContainer Loading:
Max. 10M
Bulk: as request		No.1
8 up ~ 60 mm30~1524 mmMax. 6096 mmNo.1

Application

Shanghai Tsinglong. stainless steel plate is an extremely popular mills processed material that offers good corrosion resistance for numerous types of applications. Stainless steel plate is widely used in internal equipment, walls, pressure vessels and marine applications. 430 stainless steel plate is suitable for dry or internal environment equipment. 304 stainless steel plate is suitable for outdoor walls or windows. 316 stainless steel plate is suitable for the pressure vessel of industrial and marine applications.

stainless steel marine component

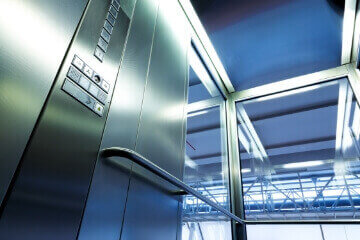

stainless steel building materials

Dimension and Shape Tolerance

Thickness Tolerance: According to 1/2 JIS G4304
ThicknessTolerance
8.0 mm < T ≦ 10.0 mm±0.32 mm
10.0 mm < T ≦ 25.0 mm±0.34 mm
25.0 mm < T ≦ 85.0 mm±0.40 mm





Length Tolerance: According to 1/2 JIS G4304
ThicknessTolerance
T ≦ 10.0 mm-0 / +60 mm
10.0 mm < T ≦ 85.0 mm-0 / +65 mm

Width Tolerance: Max. Aim ±10 mm
Edge Crack: Max. 5 mm per side

Chemical Composition & Mechanical Property

Chemical Composition (For Reference)

JIS Specification
Spec.
JIS
G4304
G4305
G4312
Steel GradeNi% Max.Cr% Max.C% Max.Si% Max.Mn% Max.P% Max.S% Max.Mo% Max.Ti% Max.Other
SUS3048.0~10.518.0~20.00.08120.0450.03---
SUS304L9.0~13.018.0~20.00.03120.0450.03---
SUS316L12.0~15.016.0~18.00.03120.0450.032.0~3.0--
SUS4300.616.0~18.00.120.7510.040.03---
ASTM Specification
Spec.
ASTM
A240
Steel GradeNi% Max.Cr% Max.C% Max.Si% Max.Mn% Max.P% Max.S% Max.Mo% Max.Ti% Max.Other
S304008.0~10.517.5~19.50.070.7520.0450.03--N: 0.1 Max.
S304038.0~12.017.5~19.50.030.7520.0450.03--N: 0.1 Max.
S3160310.0~14.016.0~18.00.030.7520.0450.032.0~3.0-N: 0.1 Max.
S430000.7516.0~18.00.12110.040.03---

Mechanical Property (For Reference)

JIS Specification
Spec.
JIS
G4304
G4305
G4312
Steel GradeN/mm 2 MIN.
Tensile Stress		N/mm 2 MIN.
Proof Stress		% MIN.
Elongation		HRB MAX.
Hardness		Bendability:
Bending Angle		Bendability:
Inside Radius
SUS3045202054090No Require-
SUS304L4801754090No Require-
SUS316L4801754090No Require-
SUS4304202052288180°1.0 time the thickness
ASTM Specification
Spec.
ASTM
A240
Steel GradeN/mm 2 MIN.
Tensile Stress		N/mm 2 MIN.
Proof Stress		% MIN.
Elongation		HRB MAX.
Hardness		HBW MAX.
Hardness		Bendability:
Bending Angle		Bendability:
Inside Radius
S304005152054092201No Require-
S304034851704092201No Require-
S316034851704095217No Require-
S4300045020522A89183180°-
