| Thickness (mm) | Width (mm) | Length |
| 3, 4, 5, 6 | 1219, 1250, 1500, 1524 Other width according to customer's request | According to customer's request |
| Thickness (mm) | Width (mm) | Length |
| 3 | 1219, 1250, 1500, 1524 Other width according to customer's request | According to customer's request |
Application

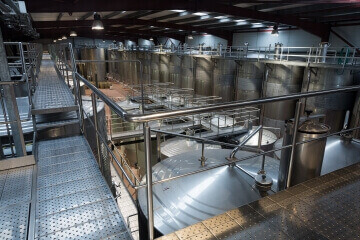

304 or 304L stainless steel checker plate has the same properties as 304 stainless steel while it has a raised tread pattern to improve traction. 304 or 304L stainless steel checker plate is suitable for trailer beds, ramps, stair treads, or any application where traction is required.
Chemical Composition & Mechanical Property
Chemical Composition (For Reference)
JIS Specification
Spec.
JIS
G4304
JIS
G4304
| Steel Grade | Ni% Max. | Cr% Max. | C% Max. | Si% Max. | Mn% Max. | P% Max. | S% Max. | Mo% Max. | Ti% Max. | Other |
| SUS304 | 8.0~10.5 | 18.0~20.0 | 0.08 | 1 | 2 | 0.045 | 0.03 | - | - | - |
| SUS304L | 9.0~13.0 | 18.0~20.0 | 0.03 | 1 | 2 | 0.045 | 0.03 | - | - | - |
Mechanical Property (For Reference)
JIS Specification
Spec.
JIS
G4304
JIS
G4304
| Steel Grade | N/mm 2 MIN. Tensile Stress | N/mm 2 MIN. Proof Stress | % MIN. Elongation | HRB MAX. Hardness | Bendability: Bending Angle | Bendability: Inside Radius |
| SUS304 | 520 | 205 | 40 | 90 | No Require | - |
| SUS304L | 480 | 175 | 40 | 90 | No Require | - |
